Coax Calculator (MOD) 3.5

An easy tool for the technician for calculating with coaxial cable.
This tool is only for 75ohm cable networks.

This tool is usable for:
Coax attenuation calculations for:
• Coax 1.5
• Coax 3
• Coax 6
• Coax 9
• Coax 12
• Coax 18
• RG6
• RG11
• RG59

Level calculation on the AOP:
• The best tap is calculated from the length and type of the coax.
• The calculation uses a MT12 tap. The level on the AOP should be minimal 62 and maximum 75dBuV.

Manual:
• All buttons are always fixed at startup.
• Any change will be calculated immediately.
• For convenience, you can use the sliders, but you can also use a keyboard.
• Max. length and frequency adjustable in settings menu.

Furthermore, these extra tools have been added to this app:

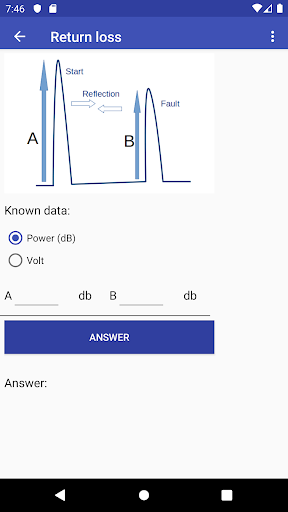

• Calculate return loss.
Calculate reflection damping for measuring equipment without reflection measurement.
• Extrapolating measurements.
Guess a 3rd measurement when two measurements are known.
• Unit conversion.
With this you can, for example, convert dBmV to various other units.

Note:
• In practice, signal attenuation can be different than calculated here. This sometimes occurs because of aging of the cable, or by the manufacturer of the cable.

• Sometimes a different tap connections is being used by a designer then what is calculated here.


-----------------
Requires: Android 5.1+

Questions / complain? e-mail.

Be sure to rate this app with your stars. Much appreciated.
Your feedback is welcome.

For problems let me know what type of phone you have.
